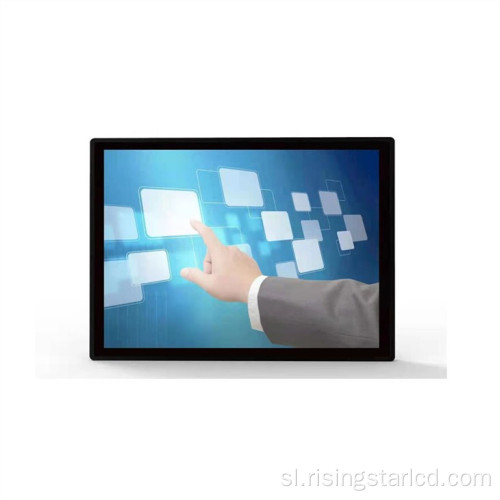

Vgrajena funkcija LCD zaslona z odprtim okvirjem
27 "-65" TFT LCD plošča
1920*1080 ali 3840*2160
na prostem, svetlost od 500nitov do 5000 nit neobvezno
Kapacitivna plošča na dotik, pokrita z 2 mm kaljenim steklom za vandalo dokaz (IR dotik neobvezno)
VGA HDMI DVI USB vmesnik
Visoko zmogljiva glavna plošča, 7x24 neprekinjeno delovanje
Podpora 12-24V široka napetost
Ultra tanek sprednji okvir 3 mm, idealen za vdelano montažo
Sprednja plošča IP55 vodoodporna
|
Product specification |
|
|
LCD panel |
|
|
Panel size |
27"-65" |
|
Resolution |
1920*1080 or 3840*2160 |
|
Support Color |
16.7M colors |
|
Brightness (cd/m²) |
1000 nits (can be customized) |
|
Contrast ratio |
1300:1 |
|
Touch panel |
|
|
Touchscreen Type |
Capacitive Touch (10 points ) |
|
Surface Hardness |
7H |
|
Luminousness |
90% |
|
Touch Interface |
USB (RS232 optional) |
|
Touch response time |
2ms |
|
Working Life |
>50 million times |
|
OSD |
|
|
OSD control |
Brightness, contrast ratio, auto adjustment, H/V position, language select, etc. |
|
Support languages |
English, French, Spanish, Portuguese, Italian, German, Russian, Japanese, Chinese, etc. |
|
Support OS |
Windows ,HDMI, Android, ect. |
|
Power Supply |
|
|
External Power Supply |
AC 100 - 240V, 50-60Hz |
|
Working voltage |
DC 12-24V |
|
Power consumption |
≤35W |
|
Enclosure |
|
|
Material |
Aluminum Alloy |
|
Color |
Black, Silver or customized |
|
VESA mounting |
75x75mm/100x100mm |
|
IP grade |
Front panel IP55 waterproof |
|
Operating Environment |
|
|
Temperature Range |
operating: -10 to 50°C, storage: -20 to 80°C |
|
Relative humidity |
operating: -5% to 95%, storage: -5% to 95% |
|
Packing Details |
|
|
Gross weight |
about 4kg |
|
Accessories |
Power adapter, VGA cable, USB touch cable, embedded screws |
|
Other |
|
|
Mounting |
embedded mounting screws |
|
Wall mounting brackets (optional) |
|
|
Desk stand holder (optional) |
|
|
Warranty |
1 year warranty |
|
Certificates |
CE, RoHS |
