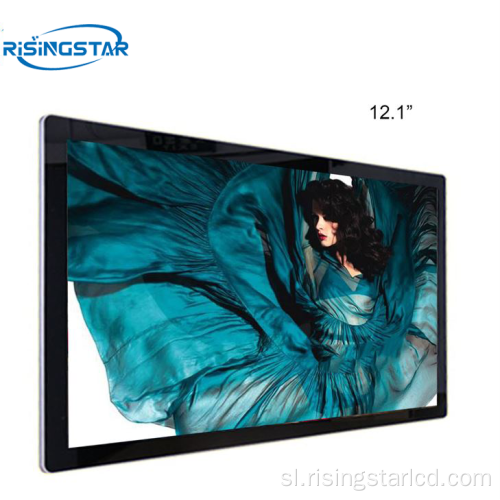

Model št.: G121EAN01.2
Visoka svetlost LCD zaslon Seriessunlight berljivhas Patent ultra tanke strukture in napredna tehnologija kakovosti slike.
500-5000nit Prilagoditev svetlosti, natančen nadzor svetlosti vsakega območja.
| brand | AUO | Model name | G121EAN01.2 |
| size | 12.1" | Screen type | a-Si TFT-LCD,LCD module |
| resolution | 1280(RGB)×800 (WXGA) 124PPI | Pixel configuration | RGB vertical bar |
| Display size | 261.12 × 163.2 (H×V) mm | Appearance of size | 278×184×9.94((H×V×D) mm |
| Visual size | 264.22 × 168.12 (H×V) mm | Surface treatment | Mist side，Hard coating (3H) |
| Brightness(cd/m²) | 1000 cd/m² (Typ.) | contrast | 1000 : 1 (Typ.) |
| Viewing Angle | 89/89/89/89 (Typ.)(CR≥10) | Apply to | Industrial and outdoor highlighting |
| Signal system | 30 pins LVDS (1 ch, 6/8-bit) , terminal | ||
| Maximum rated | Storage temperature: -30 ~ 85 °C Working temperature: -30 ~ 85 °C |
Vroče oznake: 12.1 "AUO G121EAN01.2 TFT LCD modul, Kitajska, tovarna, poceni, cena, prilagojena, ponudba, okna, obrnjena proti LCD, 55 -palčni zaslonski plošči, visok svetli LCD zaslon, 1500 nit zaslona na dotik, zunanji TV LCD zaslon, LCD, LCD zasloni prikaza, zaslon z branjem na sončni svetlobi
