Model št.: G104X1-L04

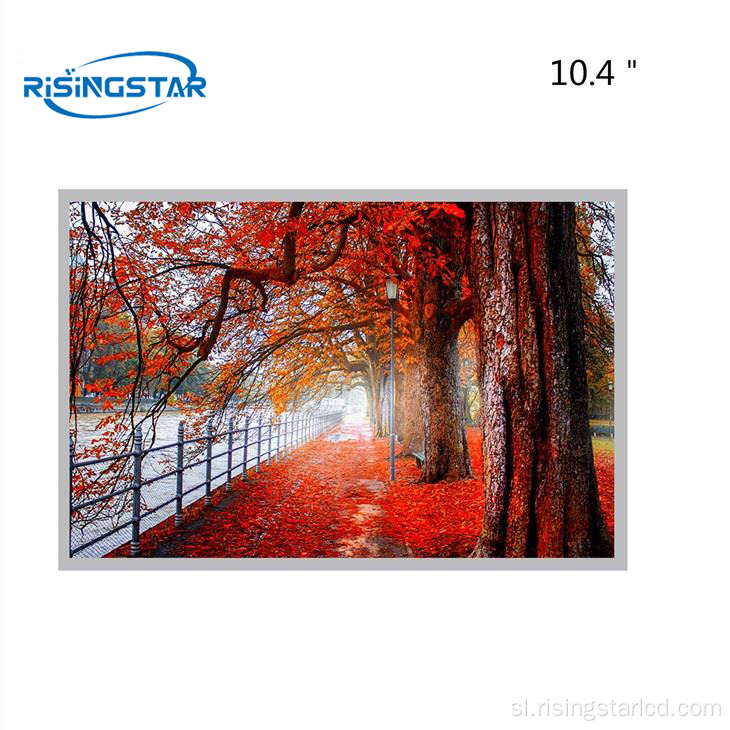

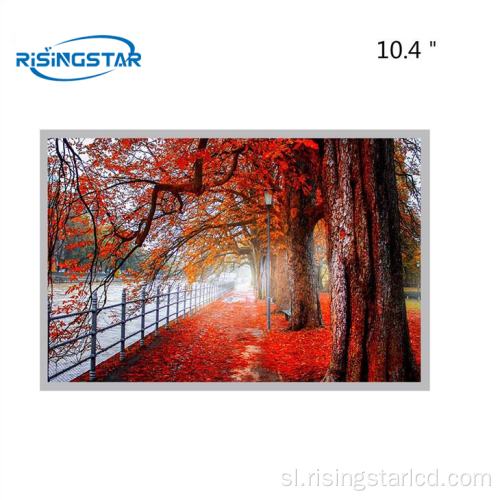

10,4 "Innolux G104x1-L04 Svetlostna 500nitis Sončna svetloba berljiva tft LCD modul.
Črna tehnologija kakovosti slike.
Temna je temnejša, svetloba je svetlejša.
Tekoči kristal industrijske stopnje, da se zagotovi kakovost tekočega kristala.
NTSC 72% barvna pokritost v barvi, obnovite bogato barvo slike.
Iste velikosti Drugi modeli: G104ACJ-L01, G104XCE-L01, G104V1-T03
| brand | Innolux | Model name | G104X1-L04 |
| size | 10.4 inch | Screen type | a-Si TFT-LCD,LCD module |
| resolution ratio | 1024(RGB)×768 [XGA] 123PPI | Pixel configuration | RGB vertical bar |
| Display size | 210.4 × 157.8 mm (H×V) | Surface treatment | Fog surface |
| Visual size | 215.4 × 161.8 mm (H×V) | Contrast Ratio | 1000:1 (Typ.) [transmission] |
| Brightness(cd/m²) | 500 cd/m² (Min.) or customized | Outline dimension | 225.5 × 176.3 × 9.2 mm (H×V×D) |
| Viewing Angle | 88/88/88/88 (Typ.)(CR≥10) | ||
| Signal interface | LVDS (1 ch, 6/8-bit) ,terminal, 30 pins | ||
| work environment | Storage temperature: -30 ~ 80 °C Working temperature: -30 ~ 80 °C |
Vroče oznake: 10,4 "Innolux G104x1-l04 TFT LCD modul, Kitajska, tovarna, poceni, cena, prilagojena, citat, okna, obrnjena proti LCD, 21 5 int int zunanji zaslon, 65-palčni lcd zaslon, 2000nit LCD, zaslon 2000 nit TV plošča, zunanji TFT LCD
