Model št.: G150XNE-L01

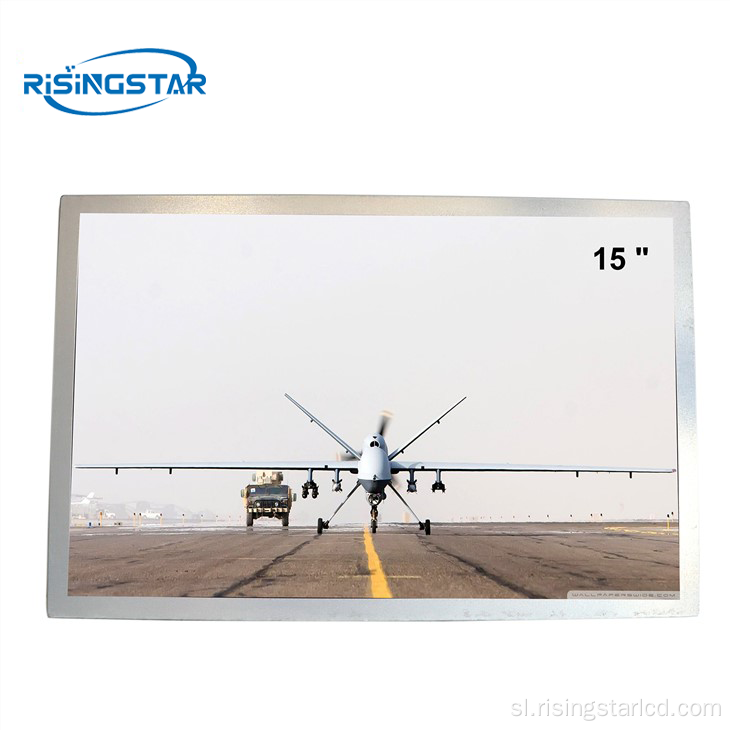

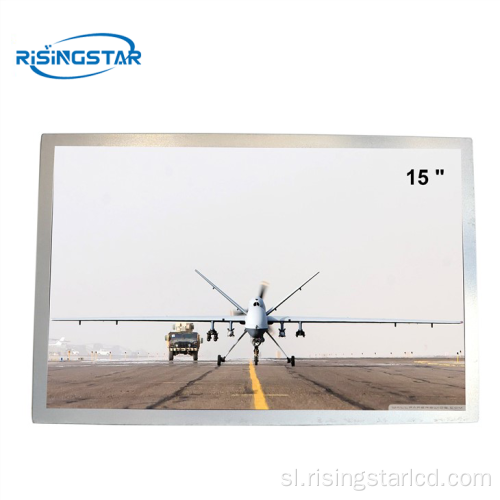

15,0 "Innolux G150XNE-L01 Svettost 500nits Sončna svetloba berljiva tft LCD modul.
Sončna svetloba berljiva in jasna prikaz 70% barvne pokritosti in obnovite obilno barvo svetlosti, ki jih je mogoče prilagoditi od 500nit-5000nit, enakomernost pa je dobro kontrolidit, lahko nosi visoko temperaturo in prikaže optimalno kakovost slike pod ekstremnim vremenom in temperaturo.
| brand | Innolux | Model name | G150XNE-L01 |
| size | 15.0 inch | Screen type | a-Si TFT-LCD,LCD module |
| resolution ratio | 1024(RGB)×768 XGA 85PPI | Pixel configuration | RGB vertical bar |
| Display size | 304.128(H)×228.096(V) mm | Surface treatment | Fog surface, Hard coating (3H) |
| Open zone | 307.4(H)×231.3(V) mm | Contrast Ratio | 2500:1 (Typ.) [transmission] |
| Brightness(cd/m²) | 500 cd/m² (Min.) or customized | Outline dimension | 326.5(H)×253.5(V) ×9.6(D) mm |
| Viewing Angle | 88/88/88/88 (Typ.)(CR≥10) | ||
| Signal interface | 20 pins LVDS (1 ch, 6/8-bit) ,terminal | ||
| work environment | Storage temperature: -40 ~ 85 °C Working temperature: -30 ~ 80 °C |
Vroče oznake: 15,0 "Innolux G150XNE-L01 TFT LCD modul, Kitajska, tovarna, poceni, cena, prilagojena, citat, okna, obrnjena proti LCD, LCD zaslon za zunanje, 2000nits LCD zasloni, plošča z visoko svetlostjo, 55-palčni zaslon na prostem, ultra zaslon, ultra Tanek LCD zaslon, 3000 NITS LCD plošča
